A shower niche looks simple, but its placement decides whether it is a joy or a daily annoyance. Set the shelves too low and you are bending for shampoo; too high and bottles tumble. Getting the shower niche height right is one of those small decisions you feel every single morning.
The twelve tips below give you the measurements pros use, from the base of the niche to shelf spacing, plus the waterproofing and tile-planning details that keep a niche looking good for years.
Photo via Pexels
Table of Contents
- 1. Start the Base 36 to 40 Inches Off the Floor
- 2. Set Soap at 48 to 54 Inches, Shampoo at 60 to 66
- 3. Go Bigger Than You Think for Couples
- 4. Size Each Shelf: 12 to 18 Wide, 8 to 12 Tall
- 5. Avoid Exterior Walls When You Can
- 6. Keep the Niche Above the Splash Line
- 7. Slope Every Shelf Toward the Drain
- 8. Align the Niche With Your Tile Layout
- 9. Measure Your Tallest Bottle First
- 10. Add a Lower Niche for Kids
- 11. For Tub-Shower Combos, Measure From the Tub Floor
- 12. Waterproof Like Your Walls Depend on It
1. Start the Base 36 to 40 Inches Off the Floor
For a standard shower, plan the bottom of the niche about 36 to 40 inches above the finished shower floor. That puts the lowest shelf within easy reach without bending, which matters more than you think on busy mornings.
If the primary user is shorter or taller than average, adjust a few inches either way. The niche should serve the person who showers there most.
Photo via Pexels

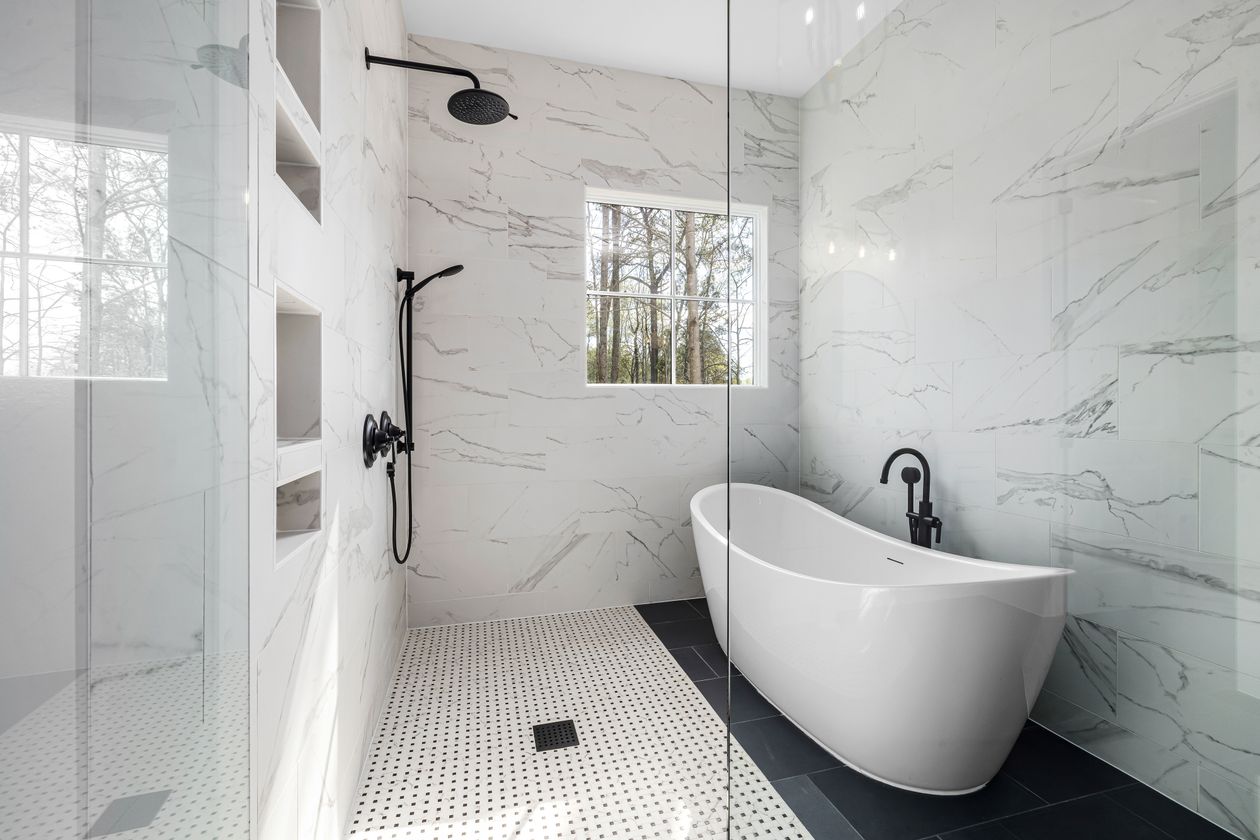

2. Set Soap at 48 to 54 Inches, Shampoo at 60 to 66
Think in tiers: everyday soap and body wash live comfortably at 48 to 54 inches, while taller shampoo and conditioner bottles want 60 to 66 inches. These heights suit most adults standing in the shower.
A two-tier niche naturally delivers this split. One shelf for daily drivers at chest height, one for tall bottles at eye level, and nothing ever stacked precariously.
Photo via Pexels
3. Go Bigger Than You Think for Couples
Forum remodelers consistently warn that a 12 by 20 inch niche feels cramped for two people's products. For a shared shower, stretch to something like 12 by 36 inches, or install two separate niches side by side.
His-and-hers niches end the great bottle migration across the shower. Each person gets their own zone, and the shower looks calmer for it.
Photo via Wikimedia Commons
4. Size Each Shelf: 12 to 18 Wide, 8 to 12 Tall
Individual shelf openings work best at 12 to 18 inches wide and 8 to 12 inches tall, with 3.5 to 5 inches of depth. That depth clears standard bottles while keeping the niche inside a typical 2 by 4 stud wall.
Deeper walls, like 2 by 6 framing, allow deeper niches, but do not go overboard. A niche deeper than 6 inches starts collecting water and looking like a cave.
Photo via Pexels
5. Avoid Exterior Walls When You Can
Cutting a niche into an exterior wall means cutting into insulation and the vapor barrier, which invites cold spots and moisture trouble. Interior walls are almost always the safer choice.
If the layout forces an exterior wall, use a surface-mounted shelf instead of a recessed niche. You keep your insulation intact and skip the waterproofing headache.
Photo via Wikimedia Commons

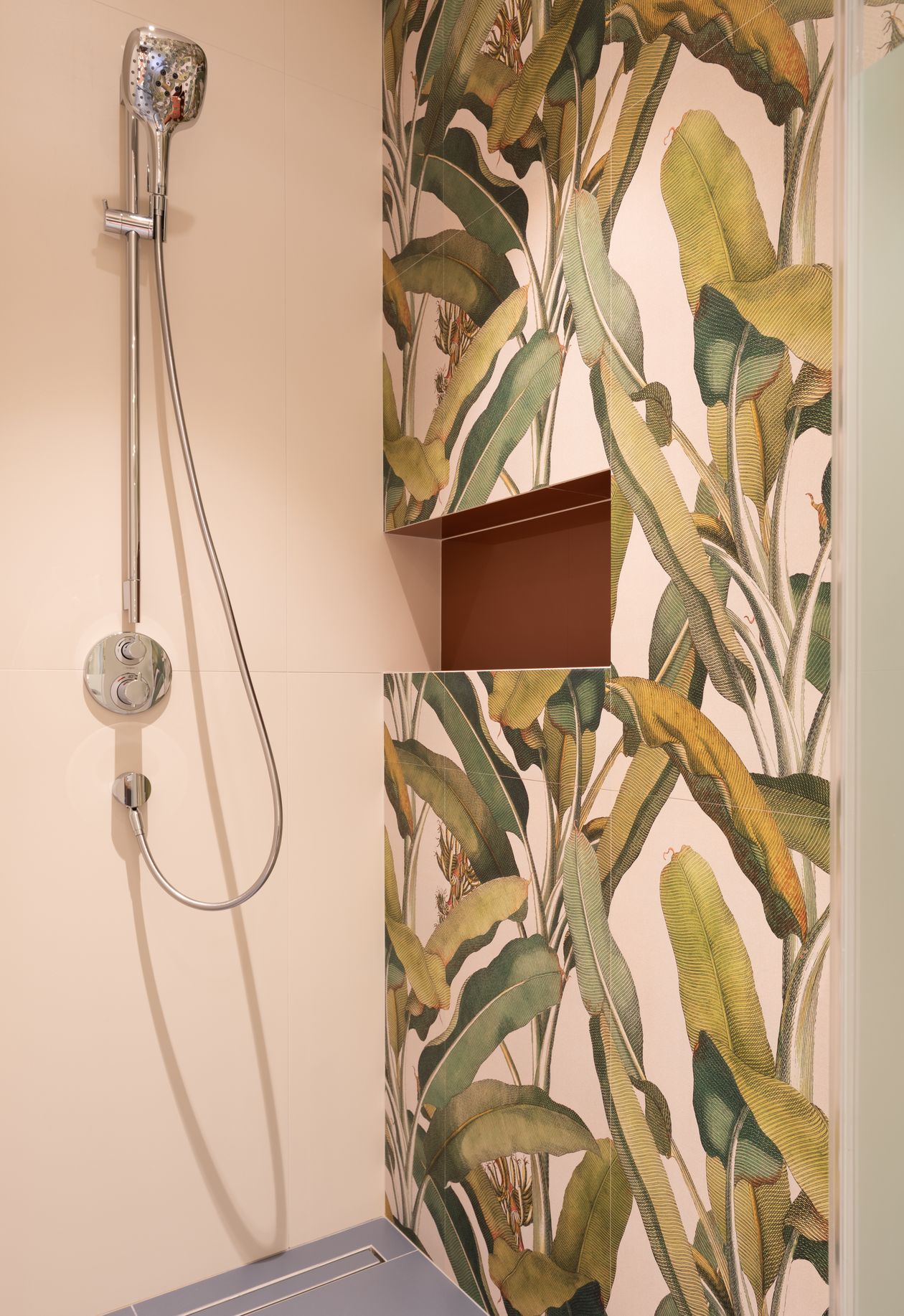

6. Keep the Niche Above the Splash Line
Experienced tilers suggest keeping the niche out of the direct blast of the showerhead. Constant pounding water drives soap scum into grout lines and keeps the niche permanently damp.
Placing it on a side wall rather than the back wall usually solves this. The niche stays cleaner, dries faster, and the bottles last longer without going slimy.
Photo via Pexels
7. Slope Every Shelf Toward the Drain
Flat niche shelves hold standing water, and standing water grows mildew. Pitch each shelf about a quarter inch toward the shower so water drains instead of pooling around your bottles.
Ask your tiler about this explicitly, because it is easy to skip. A well-sloped shelf looks identical to a flat one but behaves completely differently.
Photo via Pexels
8. Align the Niche With Your Tile Layout
Plan the niche position around full tiles, not the other way around. Aligning the niche edges with grout lines gives you clean cuts and a professional look instead of awkward slivers of tile.
This is a layout conversation to have before the first tile is cut. A few minutes with a tape measure and a tile sample prevents the most common niche regret.
Photo via Wikimedia Commons

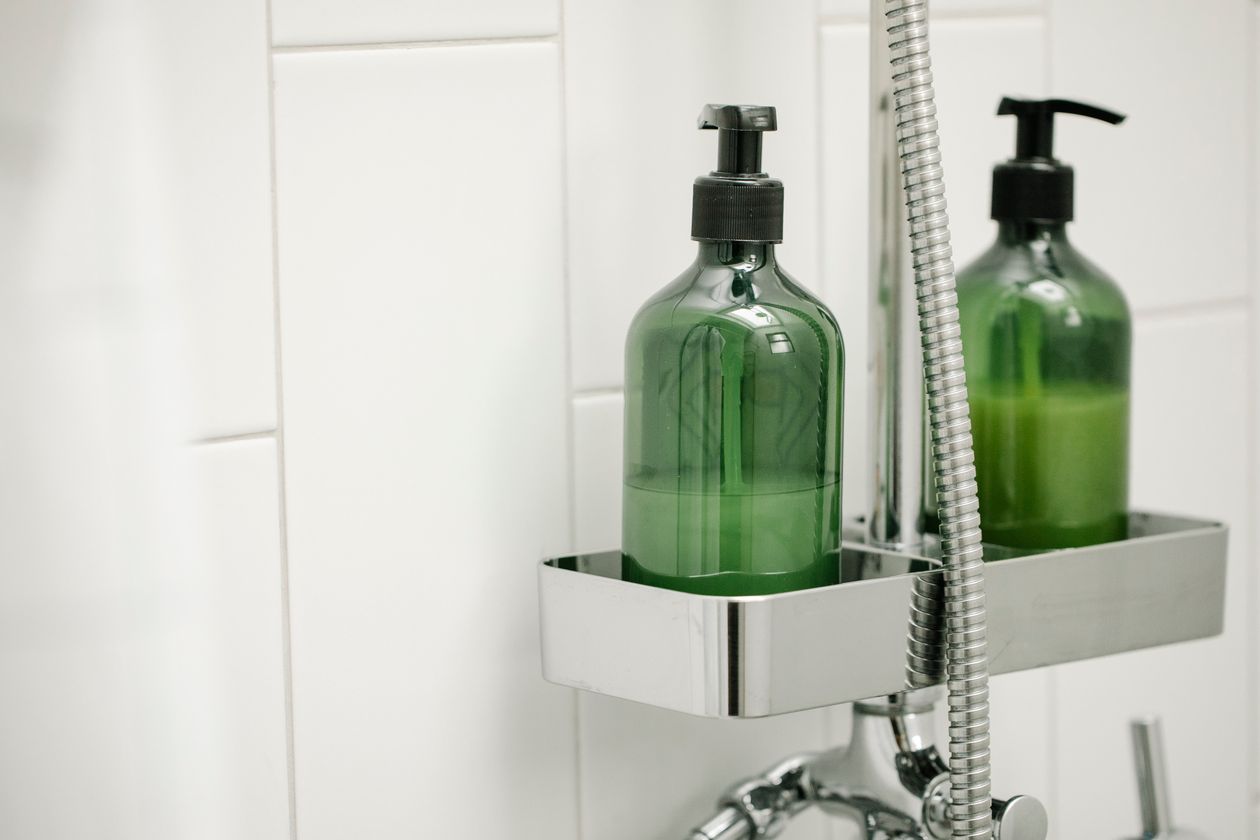

9. Measure Your Tallest Bottle First
Before finalizing shelf spacing, line up your actual bottles and measure the tallest one, pump included. Many a niche has been built an inch too short for the family shampoo.
Give that tallest bottle an extra inch of clearance. Pumps need headroom to press down, and you do not want to tilt the bottle every time.
Photo via Pexels
10. Add a Lower Niche for Kids
In a family bathroom, a second small niche at kid height, around 24 to 30 inches off the floor, lets children reach their own soap without help. It also keeps their bottles out of the adult zone.
Keep it small, one shelf is plenty, and slope it like the main niche. Little details like this are what make a bathroom feel designed rather than just built.
Photo via Wikimedia Commons

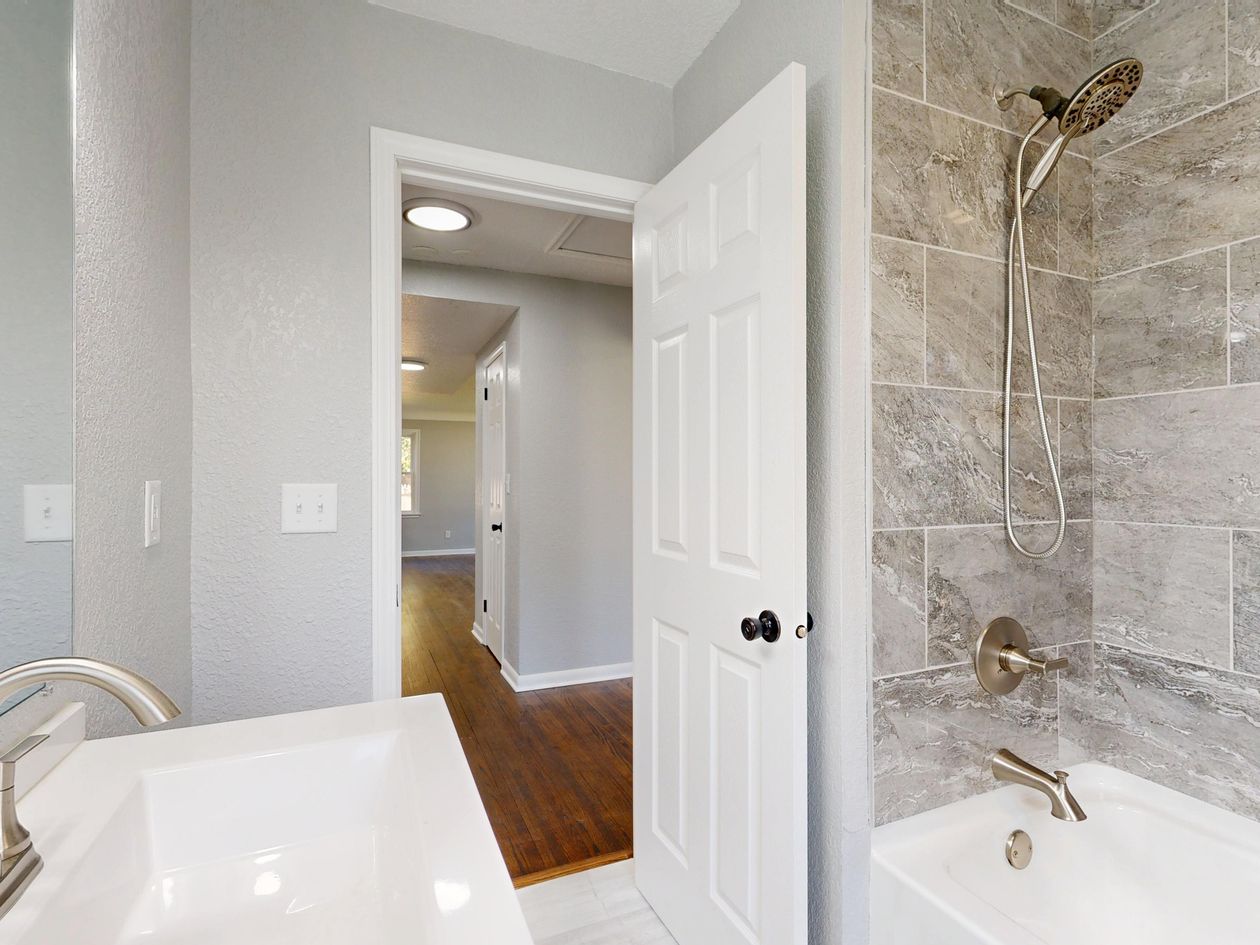

11. For Tub-Shower Combos, Measure From the Tub Floor
In a tub-shower combo, all bets are off unless you measure from the right zero point. Plan the niche base about 22 to 27 inches above the tub floor, which lands the shelves at comfortable standing reach.
Our guide to walk-in showers with no door covers a different layout, but the same reach principles apply wherever the water falls.
Photo via Pexels
12. Waterproof Like Your Walls Depend on It
A niche is a hole in your waterproofing, so treat it as the most vulnerable spot in the shower. Use cement board, not greenboard, and run a waterproof membrane continuously into the niche on all sides.
Skipping this step is the classic way to grow mold inside the wall cavity. If you are budgeting a renovation, our breakdown of how much a bathroom renovation costs shows where waterproofing fits in.
Photo via Wikimedia Commons
Frequently Asked Questions
What is the standard height for a shower niche?
The base typically sits 36 to 40 inches off the shower floor, with soap shelves at 48 to 54 inches and shampoo at 60 to 66 inches.
How deep should a shower niche be?
About 3.5 to 5 inches deep, which fits standard bottles and works with typical 2 by 4 stud walls.
Can you add a niche to an existing shower?
Yes, but it means opening the wall, so it is easiest during a retile. Surface-mounted corner shelves are the no-demo alternative.
Niche or corner shelf: which is better?
A recessed niche looks cleaner and cannot fall off, while a corner shelf is cheaper to add later and easier to replace.
Why does my shower niche always look grimy?
Usually flat shelves holding standing water, or placement in the direct spray. Slope the shelves and keep the niche out of the blast zone.
Final Thoughts
A great shower niche is invisible in the best way: bottles exactly where your hand expects them, shelves that drain, and tile lines that line up. Spend your planning energy on placement and waterproofing, and the niche will quietly serve you for decades. For the rest of the room, see our tips on bathroom vanity drawer organization.
